Crown Micro Voltmore 3KW On-Grid Inverter (VMGI-3KW-SP) Review & Price in Bangladesh

Zener Editorial Team· min
80
Product Review
Review
Crown Micro

VMGI-3KW-SP

৪.৫/
PriceBDT 35,000
Buy on ZenerBD

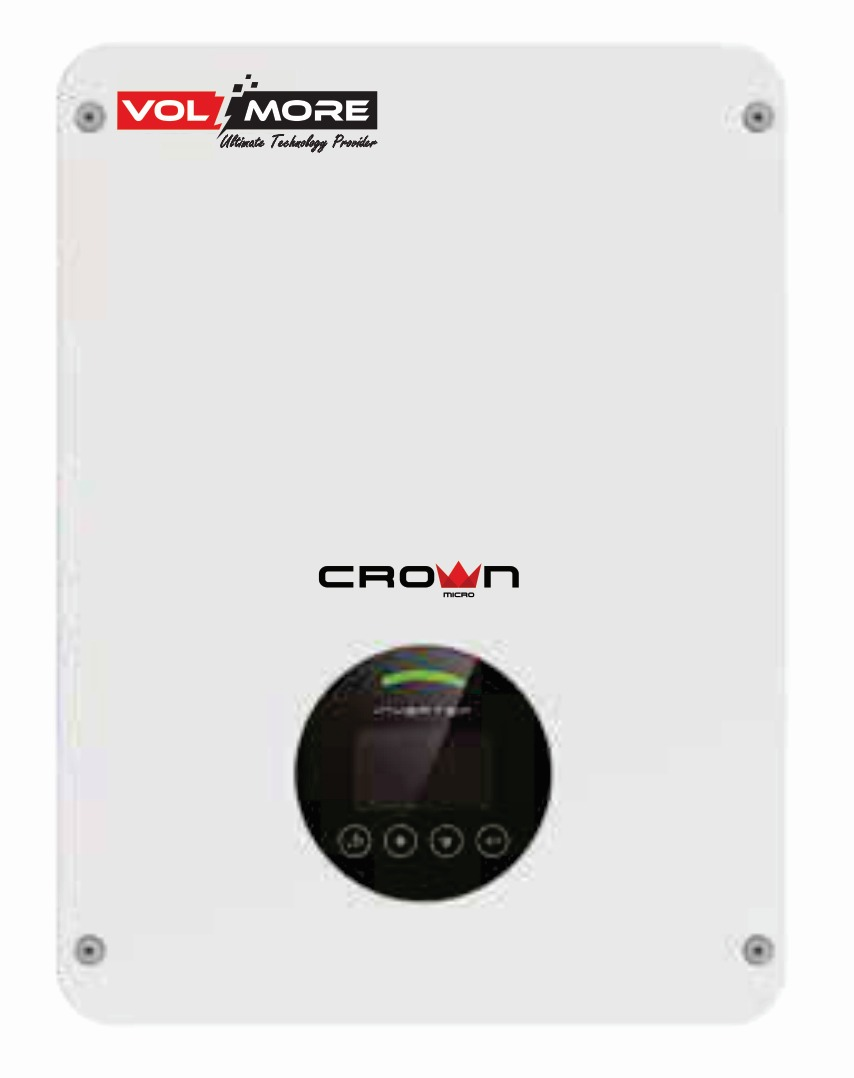

The Crown Micro Voltmore 3KW Single Phase On-Grid Inverter (VMGI-3KW-SP) is designed for single-phase residential solar installations under Bangladesh's net metering framework. It features 97.6% peak efficiency, fanless convection cooling, IP66 outdoor protection, and integrated surge protection backed by a 10-year warranty. It is ideal for grid-connected households aiming to cut daytime electricity bills. Main features/highlights:

High peak conversion efficiency of 97.6% minimizes power loss from solar panels to grid
IP66 weatherproof enclosure protects against heavy rain, dust, and humidity
Low 80V startup voltage ensures early morning generation and extended daily uptime
Natural convection cooling operates 100% silently without moving mechanical fans to wear out
Full protection suite including Type III DC/AC surge protection and anti-islanding safety
SREDA net metering approved with a long 10-year manufacturer warranty

Pros

  • Outstanding price-to-performance ratio for 3kW grid-tie installations
  • Silent operation makes it indoor-friendly or enclosure-free for rooftop stairwells
  • Robust IP66 weatherproofing built for Bangladeshi monsoon conditions
  • 10-year long-term warranty coverage builds installation confidence

Cons

  • Single MPPT input limits flexibility if solar panels are split across different roof angles
  • Wi-Fi/4G monitoring dongle is optional and sold separately

Specifications

১৮ rows · groups
Rated Power3000W / 3000VA
Max DC Input Voltage600V
Start Voltage80V
MPPT Voltage Range80V - 560V
Number of MPPT Trackers1
Max MPPT Input Current13A
Max Short-Circuit Current15.6A
Max Efficiency97.6%
Euro Efficiency97.0%
Grid ConnectionSingle Phase (230V L-N, 50/60Hz)
Max Output Current14.4A
CoolingNatural Convection (Silent Fanless)
Ingress ProtectionIP66 Weatherproof
Dimensions350 x 290 x 120 mm
Weight9.0 kg
MonitoringOptional Wi-Fi / 4G Dongle
ProtectionsDC Switch, Surge SPD, Anti-Islanding, Short Circuit, Reverse Polarity
Warranty10 Years Standard Warranty

Watching your monthly DESCO, DPDC, or REB bill climb every summer is a familiar headache for Bangladeshi homeowners. Investing in a rooftop solar system only makes financial sense if your inverter reliably feeds excess energy back into the grid through SREDA's net metering program. The Crown Micro Voltmore 3KW Single Phase On-Grid Inverter (VMGI-3KW-SP) is built specifically for this job—offering commercial-grade conversion efficiency in a compact, weatherproof housing.

What It's Actually Like to Use

Under Bangladeshi weather conditions, a 3kW solar setup connected to this inverter produces roughly 11 to 14 kilowatt-hours (units) of electricity on a sunny day. The VMGI-3KW-SP starts up at a low 80V, which means it kicks into action early in the morning when sunlight is soft and keeps converting power until late afternoon.

Because it uses natural convection cooling instead of active cooling fans, it operates completely silently. You can wall-mount it in a shaded outdoor stairwell, garage, or rooftop utility area without hearing mechanical fan noise. Its IP66 rating means driving monsoon rains, heavy humidity, and airborne dust will not penetrate the internal circuitry.

Crucially, you must understand how grid-tie inverters work: this inverter provides zero backup power during a load-shedding blackout. It requires a live voltage signal from the utility grid to operate. The moment power cuts out, its anti-islanding protection immediately trips the inverter offline within milliseconds to prevent back-feeding electricity into lines that utility workers might be servicing. If you need power during blackouts, you need a hybrid inverter with a battery bank, not a pure on-grid unit.

Price and Value

At a discounted price of ৳35,500 (down from MSRP ৳40,500), the Voltmore 3KW offers one of the lowest entry points per watt for an SREDA-approved grid-tie inverter in Bangladesh. Paired with a 10-year standard manufacturer warranty, the payback period on your solar installation shortens noticeably compared to more expensive European options, provided you have reliable grid connectivity during daytime hours.

Who Should Buy This

  • Urban homeowners with single-phase grid connections wanting to lower mid-tier to high-tier electricity bill rates via net metering.

  • Small office and shop owners operating primarily between 9 AM and 5 PM whose electricity usage coincides directly with peak daytime solar generation.

  • Rooftop owners with uniform panel angles, where all panels face south without split tilt angles.

Who Shouldn't Buy This

  • Off-grid or heavy load-shedding areas, where frequent daytime blackouts will force the inverter to shut off, leaving your solar panels completely idle.

  • Installations requiring complex multi-roof orientations, as the single MPPT input cannot independently optimize strings split across two different directions (e.g., East and West).

Verdict

With a 4.7 out of 5 rating, the Crown Micro Voltmore 3KW (VMGI-3KW-SP) delivers exceptional value for Bangladeshi rooftop net-metering setups. It trades active cooling fans and dual MPPTs for silent reliability, IP66 outdoor durability, and an attractive 10-year warranty at a competitive price point.

Pro Tips

  1. Never mount in direct western sunlight: Even though the casing is IP66 waterproof and rated up to 60°C ambient temperatures, mounting it on an unshaded wall exposed to direct 3 PM heat in Bangladeshi summers will trigger thermal derating, lowering power output to protect internal electronics. Install it under a stair roof shelter or shaded wall.

  2. Verify minimum string voltage in hot summer months: Solar panel voltage drops as panel surface temperature rises. Ensure your panel string running voltage stays comfortably above the 80V MPPT minimum on 40°C afternoon days, or the inverter will drop off grid unexpectedly.
